Removal and installation of the vacuum pump the brakes V192



Vacuum pump of brakes V192

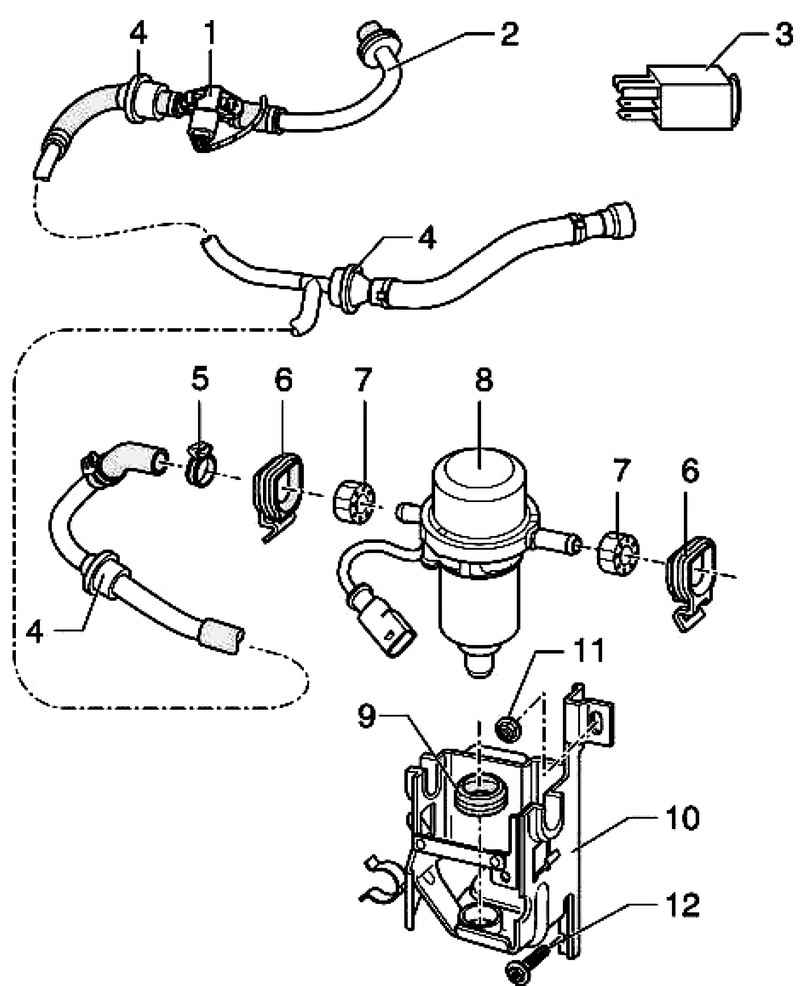

Fig. 6.11. Vacuum pump of brakes V192: 1 - pressure sensor gain in the braking system; 2 - a vacuum hose; 3 - the relay of the brake booster; 4 - check valve; 5 - a collar; 6 - Clip; 7 - an emphasis; 8 - the vacuum pump the brakes; 9 - an emphasis; 10 - an arm; 11 - a nut; 12 - hex bolt



NOTE
This pump is installed only on vehicles with petrol engine and automatic transmission
Repair of brake vacuum pump is not carried out. If there is an error - Replace the brake vacuum pump.

Withdrawal
Disconnect 1.

Vacuum hose

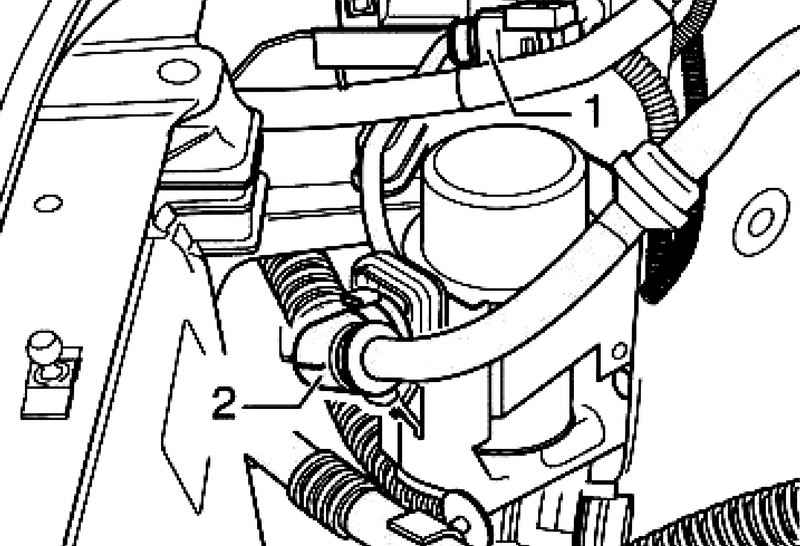

Fig. 6.12. Vacuum hose


Remove the vacuum hose from the vacuum pump 2 brakes V192 (Fig. 6.12).

Direction unlock

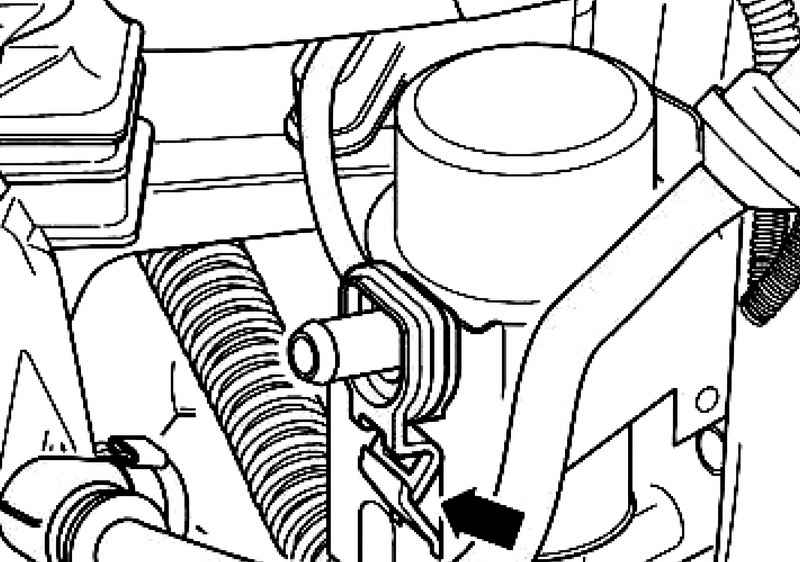

Fig. 6.13. Direction unlock


Unlock the clip in the direction of the arrow and remove (Fig. 6.13).
Remove the brake vacuum pump V192 up out of the holder.

Setting
Installation is carried out in reverse order.
