Removal and installation of the lever of the foot parking brake



Lever hand brake pedal

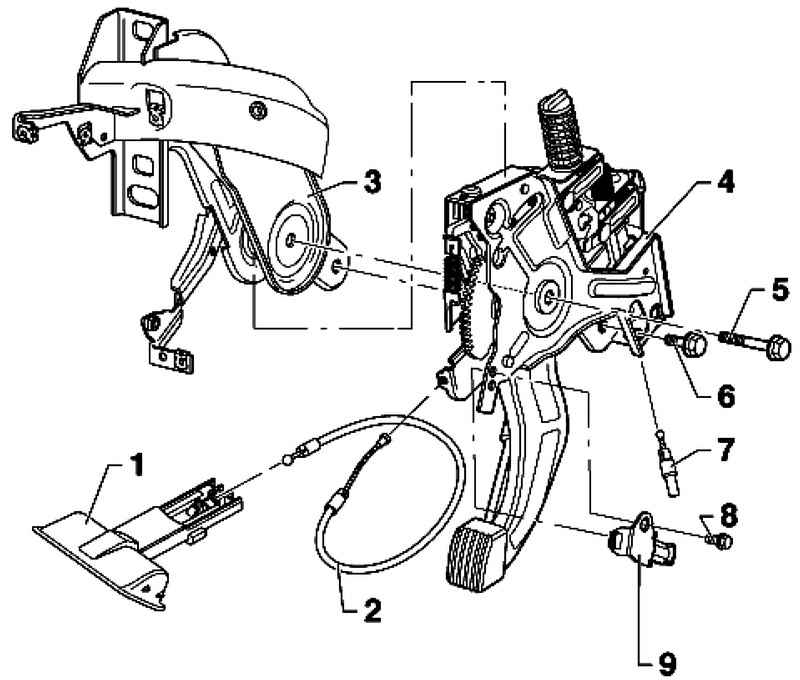

Fig. 6.49. Pedal lever parking brake: 1 - the lever brake release; 2 - pull brake release; 3 - an emphasis; 4 - foot parking brake; 5 - hex bolt, 23 Nm; 6 - hex bolt, 23 Nm; 7 - wire cutting; 8 - Allen bolt 2 Nm; 9 - pin parking brake switch


The transmitting unit

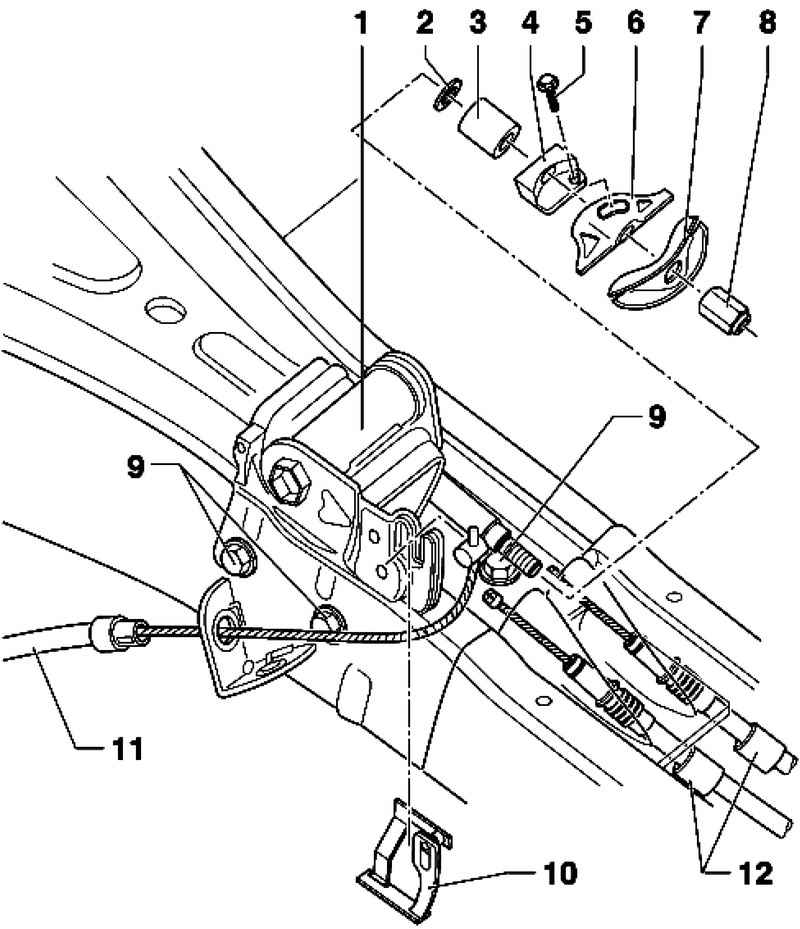

Fig. 6.50. The transmitting unit 1 - communication module; 2 - washer; 3 - buffer; 4 - the holder of a cable stopper; 5 - Torx screw; 6 - cable stop; 7 - compensatory bracket; 8 - hex nut; 9 - hex bolt, 23 Nm; 10 - Clip; 11 - a forward cable; 12 - Brake cable, rear


Rear brake cable

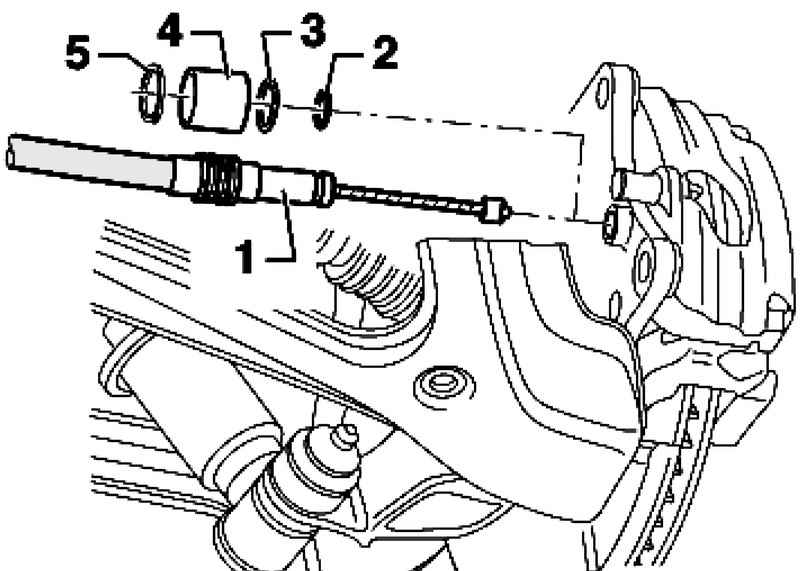

Fig. 6.51. Rear brake cable: 1 - brake cable, rear; 2 - O-ring; 3 - O-ring; 4 - sliding sleeve; 5 - a lock ring



Withdrawal
Remove the trim on the driver's side.
Disconnect the plug from the contact switch the parking brake.
Remove the left fuse box and put it together with the wiring harness as far as possible towards

Compression springs

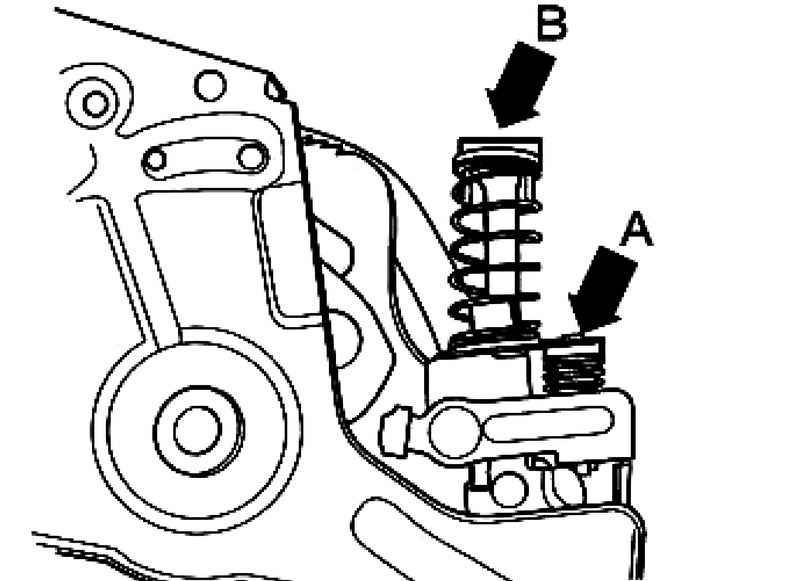

Fig. 6.52. Compression springs


First press the locking spring A bowl down to compress the spring and then adjust the cable B (Fig. 6.52).

Installing drill

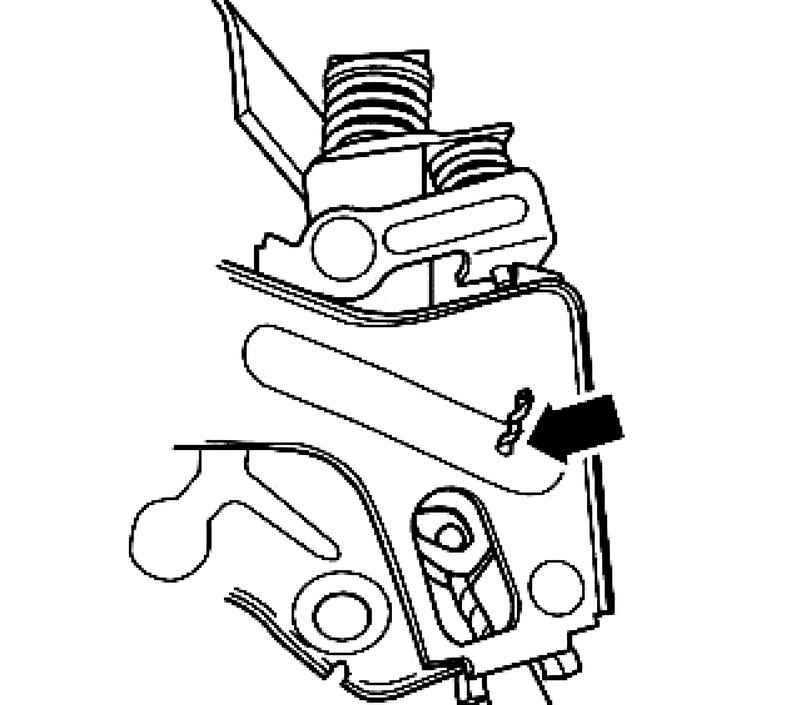

Fig. 6.53. Installing drill


Secure the compressed spring, insert, for example, drill holes through the lever of the parking brake pedal and arranged for him to mount the cable (Fig. 6.53).
Disconnect the cable attachment 1 A of the pedal lever parking brake.

The shell of a cable and mount

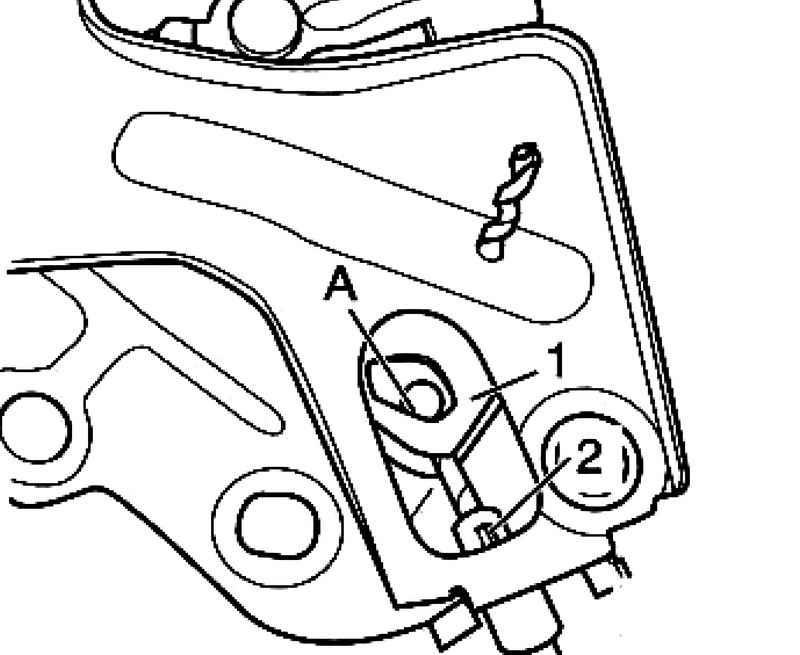

Fig. 6.54. The shell of a cable and mount


Unlock the cover of a cable 2 from the holder (Fig. 6.54).
Remove the two mounting bolts of the lever foot parking brake.
Remove the parking brake lever foot of mount.

Setting
Install in the reverse order
Remove the transport protection (drill) of the pedal lever parking brake.
There will be automatic alignment of the length of the brake cable by means of springs.
Check out the free motion of the foot parking brake
