Removal, installation and adjustment of brake light switch



Withdrawal
Remove the trim on the driver's side.

Brake light switch

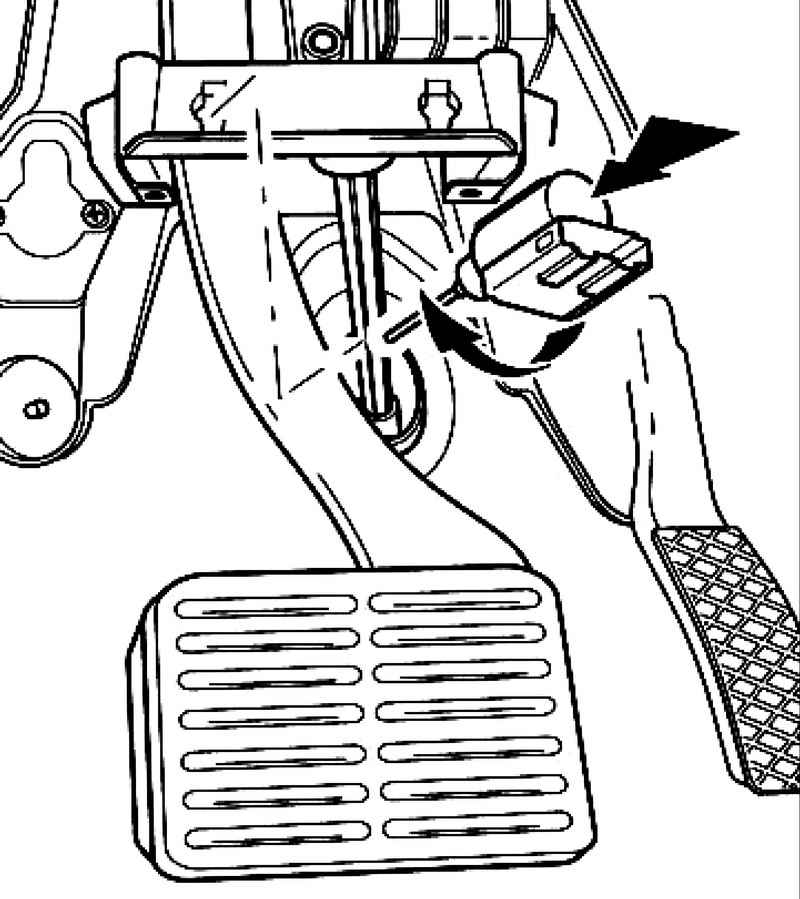

Fig. 6.59. Brake light switch


Remove the plug from the brake light switch (Fig. 6.59).
Rotate 45 ?� to the left, remove the brake light switch.
Removing and installing brake light switch must be carried out only when the plunger down, otherwise you may damage the stopper brake light switch.
Installing and configuring the switch Brake
To ensure reliable fastening not install brake light switch only once.

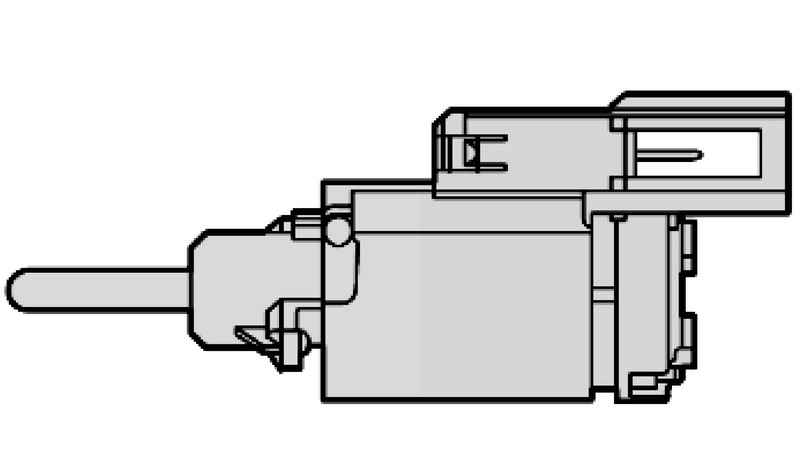

Prior to installation, remove the plunger completely

Set the switch into the mounting hole
Fig. 6.60. Set the switch into the mounting hole


Enter the switch into the mounting hole, press the pedal and lock by turning to the right 45 ?� (Fig. 6.60).
The brake pedal remains in the free position (not pressed).
Install the plug brake light switch.
Check the operation of the stoplight.
After setting the brake light switch, check whether the brake pedal rests in the end stop (released position).
Refit the driver's side
