Bleeding (major)

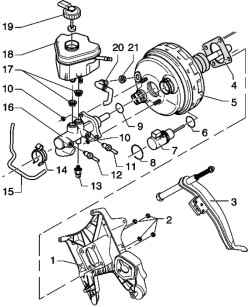

| Fig. 6.9. Brake servo / brake master cylinder 1 - the pedal assembly support bracket; 2 - hexagon nut, self-locking, 25 Nm; 3 - the brake pedal; 4 - consolidation; 5 - tandem brake booster; 6 - a sealing ring; 7 - Potentiometer stroke diaphragm brake booster; 8 - snap ring; 9 - a sealing ring; 10 - hexagonal nut, self-locking, 25 Nm; 11 - the brake pipe 14 Nm; 12 - the brake pipe 14 Nm; 13 - the gauge of brake pressure; 14 - an arm; 15 - the brake pipe; 16 - the master cylinder; 17 - sealing cork; 18 - the brake fluid reservoir; 19 - a cover; 20 - a vacuum hose; 21 - sealing plug
|
Strictly follow the order of work on pumping the brake system. On the Brembo brake calipers have two bleeder plug. Perform pumping always two bleeder plug. First bleed on external bleeder plug. Connect the device for filling and bleeding the brake system VAS 5234 or VAG 1869. Open the bleeder plug in a prescribed sequence and bleed the brake calipers. 1 - Rear right brake caliper. 2 - Rear left brake caliper. 3 - Front right brake caliper. 4 - Front left brake caliper. Use a suitable hose to pump. He has to sit tight in the bleeder plug to the braking system did not get air. Brake caliper bleeder plug with the attached hose container must remain open as long as the liquid begins to flow without bubbles.
|
